Wind Blade Lifter Adaptor for Sale in Vietnam

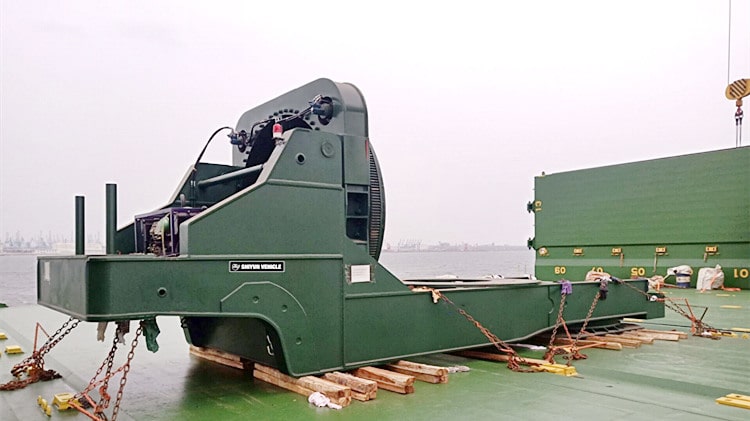

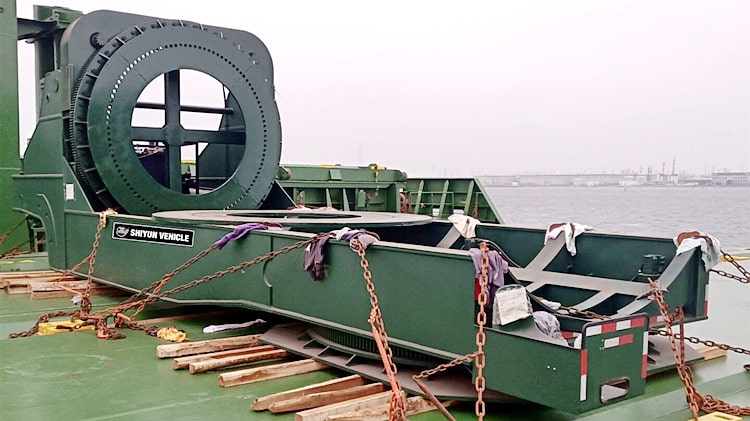

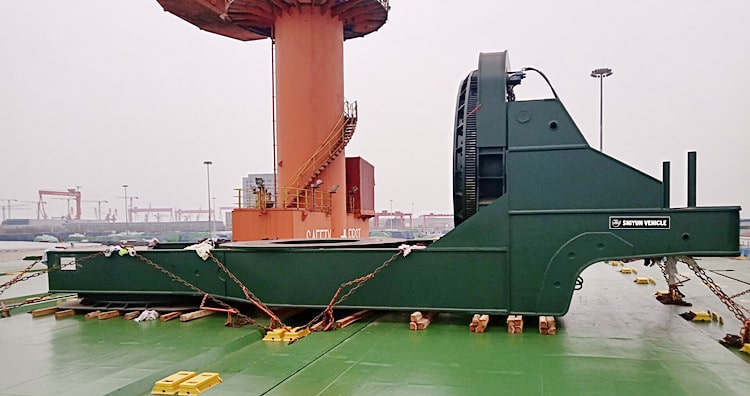

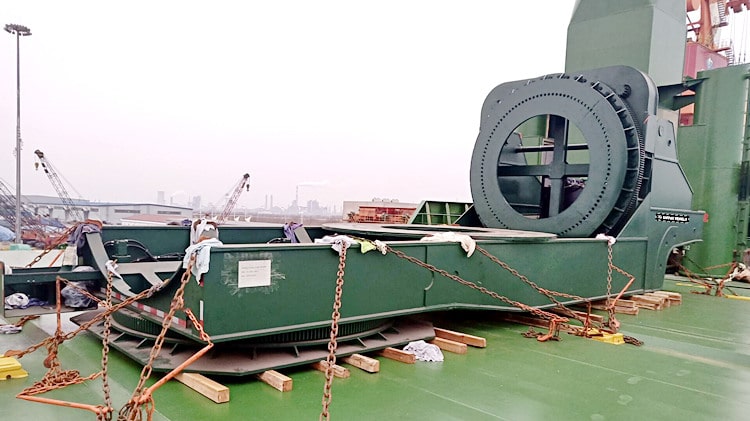

A customer from Vietnam customized a wind blade lifer adaptor. This customer bought a wind blade adaptor from Shiyun for the first time. This customer found our product on Alibaba and left inquiry on the website. After that, our sales contacted the customer by phone. After inquiring about the customer's purchase intention, the sales asked the customer for the email address. The customer confirmed the product he purchased and its size, configuration, etc., and immediately paid the deposit. After receiving the order, the factory completed the windmill blade transport adaptor as soon as possible, and the customer immediately paid the final payment after seeing the picture of the complete windmill blade transport adaptor. Ready for shipment.

Wind Blade Lifter Adaptor for Sale in Vietnam

The length of the wind blades is at least 30 meters, so the above-mentioned transportation method cannot be used in mountainous areas. What should I do? Recently we saw a windmill blade transport adaptor semi-trailer specializing in transporting wind blades.

It is a good solution to the transportation in the mountainous area of ​​the wind leaf, which is different from "putting" on the car. This transportation method is similar to holding a big sword in your hand, which can make the wind leaf different up and down.

Move in the direction to avoid various obstacles on the mountain road to meet the needs of wind blade transportation.

On the fixed base of the blades, the low center of gravity ensures safety

Wind Blade Lifter Adaptor for Sale in Vietnam

The wind blade adaptor truck is set backward to make the length of this wind blade semi-trailer shorter, which is conducive to driving in mountainous areas; the special-person operation is conducive to improving safety.

Different from the conventional vane transport vehicle, this vane transport trailer has a very short length, which is also to satisfy that the vehicle can normally run on mountain roads. You can think of it as

A crane has its walking part below and a turret above. The wind blades are like the boom of this crane.

The wind blades to be transported are fixed on the vehicle by bolts, the blades and the base are firmly integrated, and the movement of the wind blades up and down, left and right will not occur during the transportation process.

Danger. The up and down displacement of the base is realized by the cylinders arranged on both sides, which can achieve a lifting range of 0-60 degrees, in order to ensure that the center of gravity is unstable when the blade is displaced.

, The back of the base can prevent counterweights to achieve the balance of the entire vehicle, and the counterweights can be flexibly added according to the weight of the wind blade. The trailer is equipped with size 275/70R22.5

The purpose of the tires is to reduce the height of the entire vehicle, which is not only more convenient when loading and unloading, but the lower height also ensures the stability of the vehicle during operation.

Wind Blade Lifter Adaptor for Sale in Vietnam

Inspired by cranes, air conditioning improves comfort

The turret is fixed on the wind blade adaptor trailer, and the hydraulic motor drives the gear fixed under the turret to realize the rotation of the entire base. The turret can theoretically realize a 360-degree rotation.

With such a long blade, if the force generated by the front wind is very terrifying, if it is held high, it is very likely to overturn the transport vehicle. To solve this problem, the base is

It can also rotate along the axis of the blade under the premise of satisfying the lift, so that the windward side of the blade is always on the side with the smallest area.

A diesel engine is mounted on the wind blade adaptor trailer, and the hydraulic pump directly connected with the rotating shaft provides the power source for the upper part.

The square welded oil tank is used to store hydraulic oil and can provide all heat dissipation capabilities, so there is no radiator installed. The upper part has its own battery and fuel tank, and the layout of the pipeline allows

People are dazzled, and it would be better if they can be straightened out. The hydraulic motor that realizes the rotation of the turret and the fuel tank that provides grain for the diesel engine. The entire upper part of the part is carried out by a dedicated person

The operation, the principle of operation is basically similar to that of a crane. In order to improve the comfort of the operator, an air conditioner is installed in the operating room.
